| ZJ-A-F/V(I)SIGNAL CONVERTER |
| Hits：21522 AddTime：2021/9/20 17:55:44 |

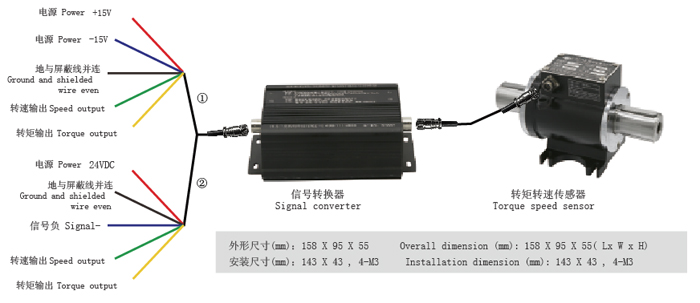

ZJ-A-F/V(I)Signal converter is the accessory product of ZJ torque speed sensor provided for users. When it is inconvenient for users to measure the output frequency signal of sensor directly, this product can be used for the conversion of output signal. F/V signal converter can converter the output frequency signal of sensor into standard voltage signal. F/I signal converter can converter the output frequency signal of sensor into standard current signal. FEATURES: PLUG CONNECTION AND LEAD DEFINITION Customer power supply voltage：① DC±15V ②DC 24V(optional）
MAIN FUNCTION AND PERFORMANCE INDEX Power supply: DC±15V or DC 24V (error: ±0.4V) Power supply dissipation power: less than 1W Response time: ≥100mS Conversion accuracy: ±0.1% F.S Signal input: optoelectronic isolation. This device is used with ZJ sensor. F/V signal output: 0-5V and 0-10V (optional) F/I signal output: 4-20mA Operating environment: temperature range: -20℃-60℃; humidity range: 0-90%RH; no corrosive gases, etc. |
