| The efficiency test system of 300KN. M worm gear box has passed the customer's site acceptance |
| Hits：11637 AddTime：2021/1/16 8:19:54 |

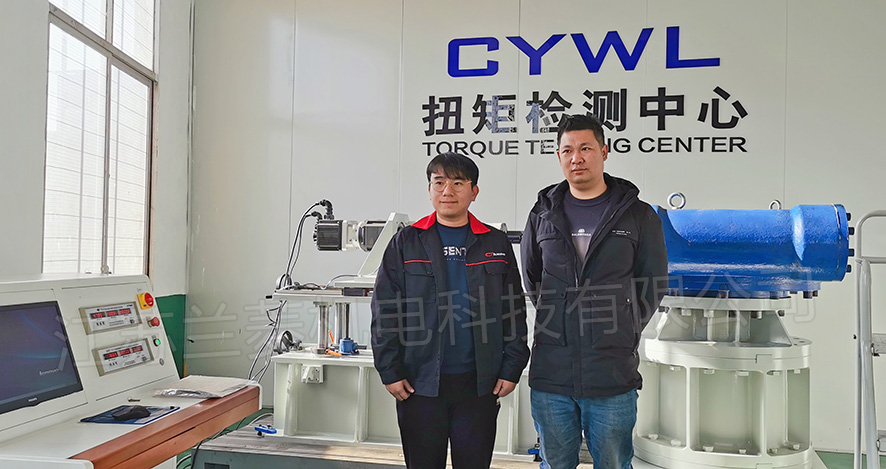

On January 14, 2021, the efficiency test system of 300KN. M worm gear box customized by Quanzhou Chaoyue worm gear valve Co., Ltd. was debugged at the customer's site, passed the test acceptance smoothly, and won high praise from customers! The efficiency test system of worm gear box adopts 3kw-1500rpm servo motor as the power part. The torque is amplified to 1000N. M through 1:56 planetary reducer, which meets the power input requirements of 0-1000n. M input torque and 0-26.8rpm adjustable speed; In order to make the power part coaxial with the input shaft of the worm gear box to be tested, we make the power platform adjustable for lifting, moving forward and backward, lifting and moving left and right, and locking up, down, front and back. The whole power module is fixed on the cast iron platform by pressing plate, T-nut and bolt. Because the power shaft and the input shaft of worm gear box inevitably have coaxiality error, we use universal joint to alleviate the error. The transition seat is added to protect the torque speed sensor from bending moment and axial force. In order to reduce the height of the whole test bench, we use the flange type static torque sensor produced by Lanling, which is connected with the output shaft hole of the worm gear box through the spline shaft. Considering the size of each model of worm gear box to be tested, we have designed universal connecting flange and spline shaft hole. We only provide the test fixture of the largest model of worm gear box, and the rest models can provide drawings for customers to process. The system can display the input torque, speed, power, output torque, speed, power, efficiency on the real-time computer screen, and can form curves and test reports Lanling technology, a professional manufacturer of torque, speed and power test bench! "Your satisfaction, our pursuit"! Hotline: 400-111-3688! |
